Pure Steam Generator

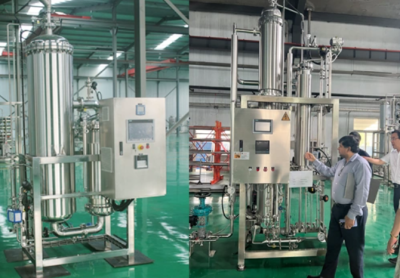

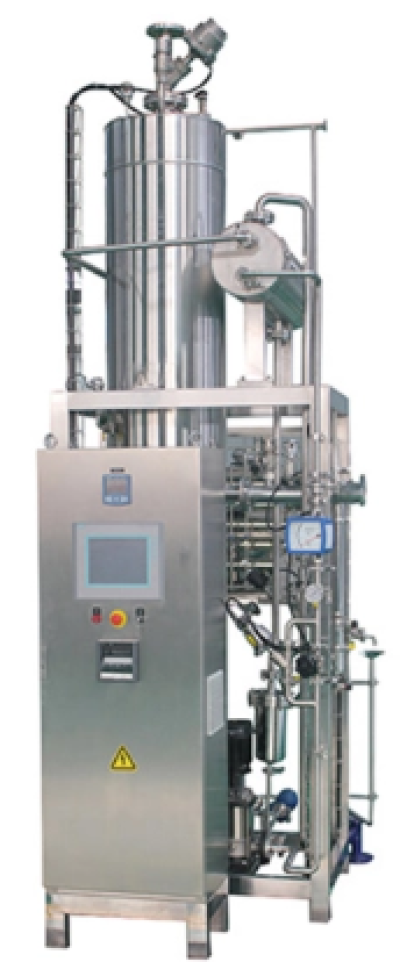

  Pure steam generator of US is a kind of equipment that adopts purified water as raw material water and heated by industrial steam to produce clean pure steam. This series of equipment can be used for sterilization and disinfection of pharmaceutical equipment and various process production lines (pipelines, storage tanks, etc.). The pure steam condensed water produced meets the requirements of the Chinese Pharmacopoeia (CP2020), United States Pharmacopoeia (USP43), European Pharmacopoeia (EP10) for water for injection.

  The qualified raw water is pressurized by the multi-stage pump and then enters the pipeline condenser 2, uses waste heat to heat the raw water, and then enters the preheater 2 and the preheater 1. After heat exchange, it enters the evaporator and is sprayed into the heating tube by the material water distributor. Make material water to flow in a film status on the tube wall, which will be heated and vaporized by industrial steam. The secondary steam with water droplets generated after gasification enters the steam-water separation device from the lower end of the evaporation chamber, and becomes ultra-pure steam after three-stage.
