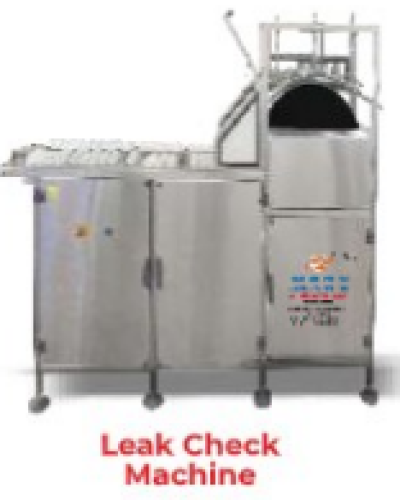

Pressure Leak Test Machine for IV Plastic Bottle

Pressure Leak Test Machine for IV Plastic Bottle

SALIENT FEATURES:

• The machine is manufactured or developed in accordance with GMP standards.

• SS square pipe frame structure with doors of SS 304 sheet.

• All moving parts of the machine covered by safety guards of SS.

• All expose parts of SS / electro less nickel plated.

• Single track SS chain conveying system to convey the product with adjustable side guide.

• Drive motor & gearbox mechanism.

• Star wheel & rotary wheel (partially) is covered with acrylic cover.

• The back side mirror provides which can easily identify leakage of bottle by operator.

• Pressure alignment level for different sizes of bottles.

• Star wheel to lift the bottle.

• Star wheel & Rotary wheel is made from UHMW-nylon.

• Adjustable pressure rod.

• Collection tray at the bottom to collect liquid from leakage bottles.

• Most reliable & proven components such as electrical/electronic such as AC Motor, Gearbox, MCBs, Contactors, relay etc. CE makes.


OPERATION:

• Bottles to be loaded manually to the conveyor.

• The bottles move on conveyor & at the end of conveyor bottles lifted with the help of star wheel.

• Through the star wheel bottle moves on rotary wheel with pressure rod where the operator can check leakage in the bottles with the means of pressure.

• The operators remove the leaked bottles manually.

• After the process of leak testing the bottles are transferred for further operation.
