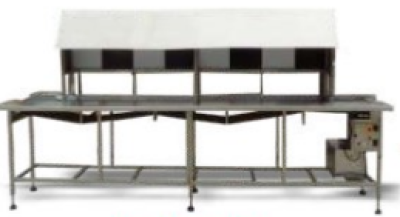

Visual Inspection Conveyor

Visual Inspection Conveyor

SALIENT FEATURES:

• The conveyor is manufactured or developed in accordance with GMP standards.

• The SS square pipe frame structure of rigid construction.

• Special nylon rubberized endless belt is used for the conveyor for long life & durability.

• Specially designed SS 304 hood for internal LED lighting with black & white stations to visualize foreign particles stand out clearly in sterile containers and solutions during a manual visual inspection.

• Guide provision for transfer of bottles into initial 2 tracks & final 3rd tracks for conveying the tested products.

• Easy & comfortable visualization position for operators for inspection.

• Specially designed hard chrome roller with self-aligned bearings for longer life of conveyor.

• Sitting arrangement for operators (OPTIONAL).

• A tension mechanism is provided for adjusting the belt tension.

• AC variable drive for variable speed as per product size. The drive is fitted in the control panel below the conveyor.

• Most reliable & proven components such as electrical/electronic such as AC Motor, AC Drive, MCBs, Contactors, relay etc. CE makes.

OPERATION:

• Bottles coming from onward machine/to be loaded manually to the conveyor.

• The bottles are automatically bifurcated into 2 adjoining tracks with the help of a guide.

• The operators pick up the bottles from the 2 sidetracks. They visually inspect the bottles with the help of black and white booth with tube light on conveyor for any breakage, leakage, proper volume filled & sealed and any strange particles in filled bottle.

• After inspection the bottles are placed in the central track, which is transfer for further operation.
